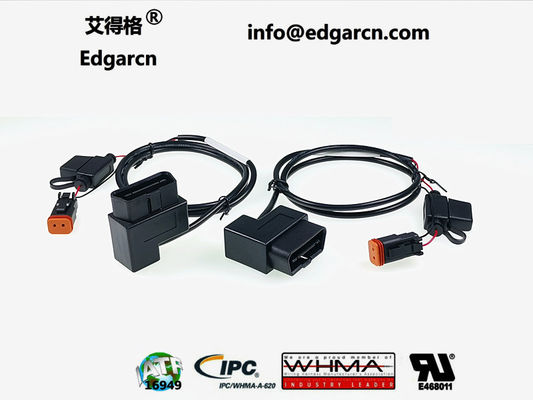

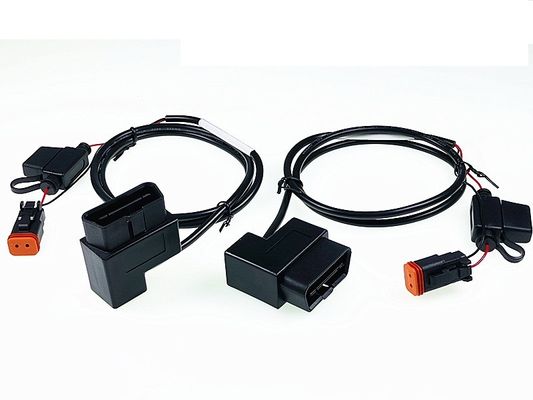

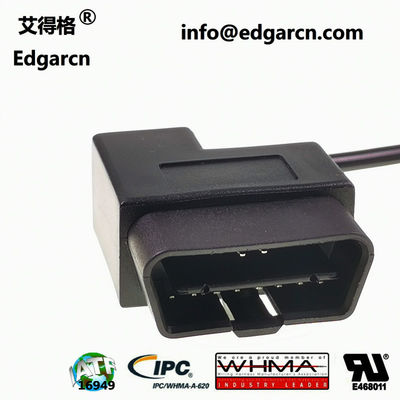

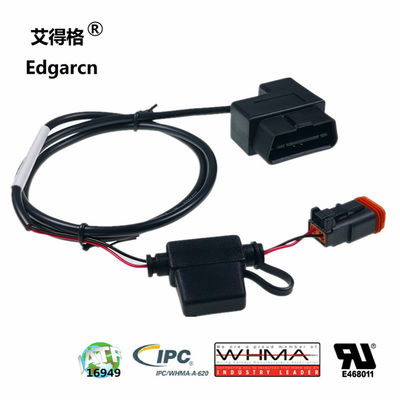

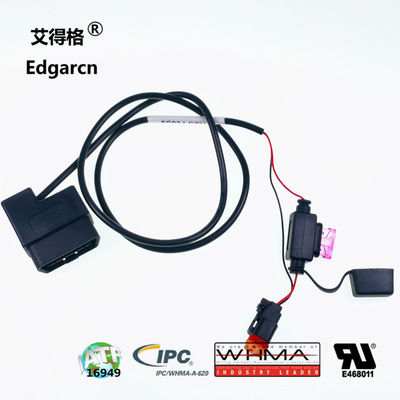

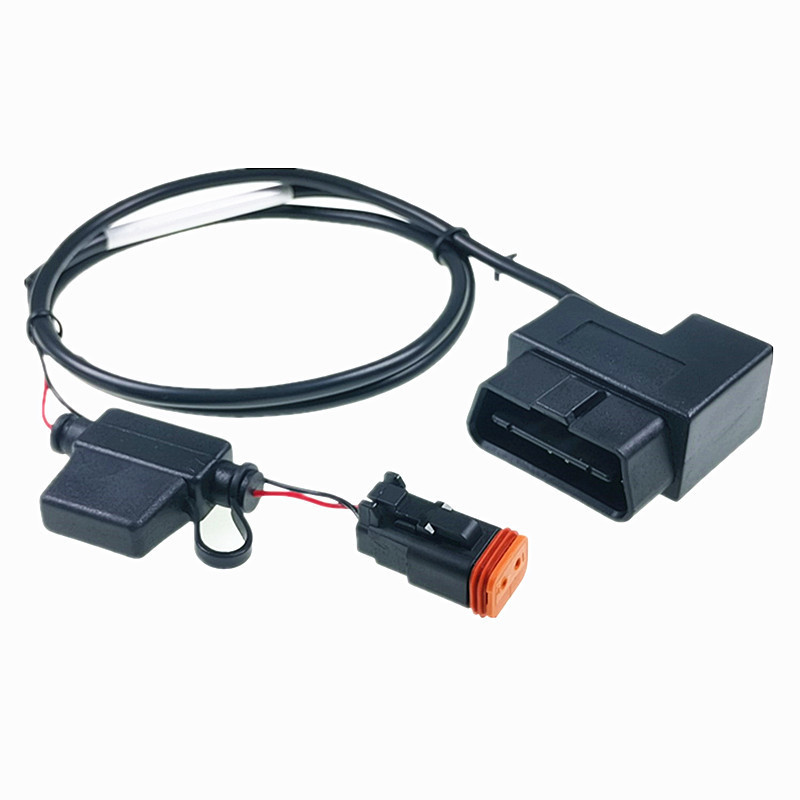

16pin OBDII Passthru Cable with Power Break Out and IP68 Rating for Heavy-Duty Automotive Wiring Harness
Λεπτομέρειες:
| Τόπος καταγωγής: | Guangdong, Κίνα |
| Μάρκα: | Edgarcn & EdgarWireHarness |
| Πιστοποίηση: | IATF16949 TS16949 UL |
| Αριθμό μοντέλου: | J1939 & J1962 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 10000 |
|---|---|
| Τιμή: | $1.40-1.50 |
|
Λεπτομερής ενημέρωση |
|||
| Τύπος σύνδεσης: | Deutsch J1939 HD-16-9-1939S-P080 HD-10-9-1939P-P080 | Αρίθμηση καρφίτσες: | 2 πείρος |
|---|---|---|---|
| Τύπος καλωδίου: | UL 1007 18# και 16# | Διατήρηση επαφών: | 20 λίβρες |
| Εφελκυσμός: | > 20 λίβρες (18#),> 25 λίβρες (16#) | Θερμοκρασία λειτουργίας: | -40 ℃ έως +125 ℃ |
| Αντίσταση δόνησης: | 20 G στα 10-2000Hz για 2 ώρες | Βαθμολογία IP: | IP68 |
| Αδιάβροχο βάθος: | 1,2 μέτρα για 24 ώρες | Τύπος τερματικού: | 1060-16-0122 |
| Μοντέλο αποτυχίας: | Ζημιά με σύρμα, σπασμένο grommet | Υλικό: | Σιλικόνη καουτσούκ σφραγισμένο, θερμοπλαστικό |
| Σειρά συνδετήρων: | EDG-HD | Επιλογές χρωμάτων: | ΚΟΚΚΙΝΟΣ, ΜΑΥΡΟΣ, ΜΠΛΕ, ΠΡΑΣΙΝΟΣ |
| Προσαρμοσμένο μήκος: | Ναί | ||
| Επισημαίνω: | 16pin OBDII Passthru Cable,IP68 Rating Automotive Wiring Harness,Power Break Out Diagnostic Connector Cable |
||
Περιγραφή προϊόντων
The EDG-HD series is an environmentally sealed silicone rubber thermoplastic cylindrical connector designed for fast, easy, trouble-free assembly in heavy-duty diagnostic applications including trucks, buses, cross-country vehicles, cranes, and forklifts. When mated, the contacts are protected from water, dust, oils, fuel, road salt, grease, mud, and other contaminants.
- Operating temperature range: -40℃ to +125℃ (no cracking, chipping, or leaking after 20 test cycles)
- Withstands 20 G's sinusoidal vibration at 10-2000Hz for 2 hours in three mutually perpendicular planes with no mechanical damage
- IP68 rated - waterproof with immersion under 1.2 meters of water for 24 hours
| Terminal Type | Wire Type | Contact Retention | Ref Crimp Tensile | Failure Model |
|---|---|---|---|---|
| 1060-16-0122 | UL 1007 18# | 20 LBS | >20 LBS | Wire damage |
| 1060-16-0122 | UL 1007 16# | 20 LBS | >25 LBS | Grommet broken |
| Terminal Type | Wire Type | Contact Retention | Ref Crimp Tensile | Failure Model |
|---|---|---|---|---|
| 1060-16-0122 | UL 1007 18# | 20 LBS | >20 LBS | Wire damage |
| 1060-16-0122 | UL 1007 16# | 20 LBS | >25 LBS | Grommet broken |
Packaging can be customized to client specifications. Standard lead times:
| Quantity (PCS) | 1 - 1000 | 1001 - 5000 | >5000 | Mold/Tooling |
|---|---|---|---|---|
| Est. Time (Days) | 20 | 25 | To be negotiated | 30 days more |
International shipping available via DHL, UPS, FedEx, TNT, ARAMEX, and EMS. Options for air, sea, or other shipping methods.
Q: Can you help with design?
A: Yes, we are an ODM/OEM company specializing in wire harness and cable assembly since 1999.
Q: When will you start the design process?
A: We provide initial sketches for discussion. After order confirmation, we create detailed drawings for client approval.
Q: How do you handle quality issues?
A: Our quality team responds within 72 hours to resolve any issues, as we prioritize long-term customer relationships.
Q: Do you have standard products to reduce lead time?
A: Yes, we maintain over 1000 molds and 5000+ wire harness products developed over 20+ years of experience.
