5C908 Fuse Holder Automotive Wire Harness with PVC Wire 105℃ 300V and UL1007-22AWG Wire for Truck GPS
Λεπτομέρειες:
| Τόπος καταγωγής: | Guangdong, Κίνα |
| Μάρκα: | Edgarcn |
| Πιστοποίηση: | RoHS, UL, ISO9001,IATF16949 |
| Αριθμό μοντέλου: | προσαρμοσμένος |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 500 |
|---|---|
| Τιμή: | $5-15 |
|
Λεπτομερής ενημέρωση |
|||
| Αριθμός μέρους: | Καλώδιο 5C908 | Μήκος καλωδίου: | 30 εκατοστά |
|---|---|---|---|
| Τελεφερίκι Awg: | UL1007-22AWG | Χρώμα καλωδίου: | Μαύρο κόκκινο |
| Καταμέτρηση συντήρησης: | 2 | Καλωδιακό υλικό: | PVC |
| Θερμοκρασία καλωδίου: | 105 ℃ | Τάση καλωδίου: | 300V |
| Τύπος σύνδεσης: | Μωλέξ | Τύπος διαδικασίας: | πάνω από καλούπωμα |
| Αρίθμηση καρφίτσες: | 20 | Πρωτογενές VCC: | ΛΕΥΚΟ/ΚΟΚΚΙΝΟ |
| Αρχικό έδαφος: | Μαύρος | Host RXD: | Πράσινος |
| Host TXD: | Μπλε | ||
| Επισημαίνω: | 5C908 Fuse Holder Automotive Wire Harness,PVC Wire 105℃ 300V Automotive Wire Harness,UL1007-22AWG Wire Automotive Wire Harness |
||
Περιγραφή προϊόντων

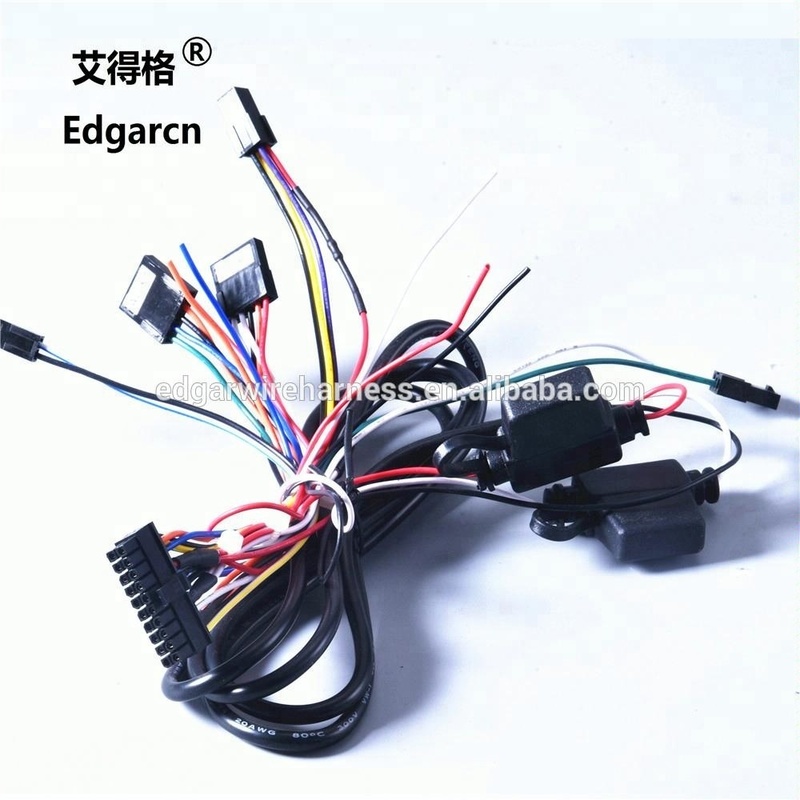

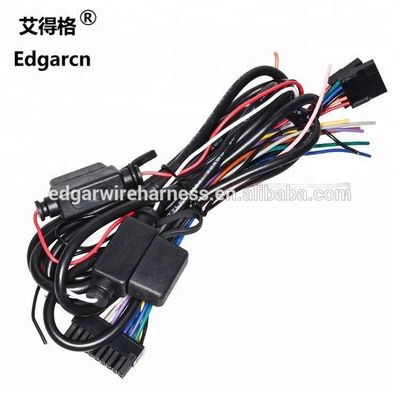

5C908 Fuse Holder Automotive Wire Harness for Truck GPS
Edgarcn 5C908 fuse automotive wire harness, cable assembly, and wiring harness solution for automotive applications.
Product Specifications
Part number: Cable 5C908
Wire length: 30cm
Wire AWG: UL1007-22AWG
Color: Black & Red

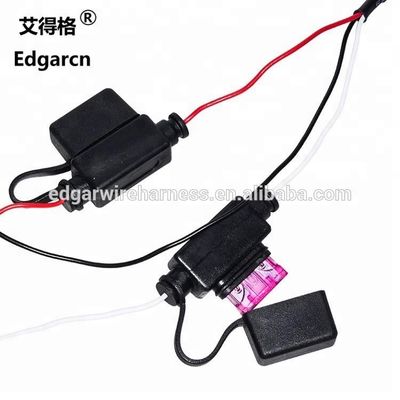

Features: Includes 2 fuses
Application: Automotive

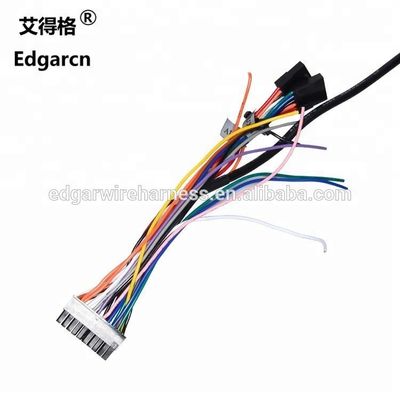

Molex Micro-Fit 20 Pin Configuration
| Pin Number | Signal description | Color | Pin Number | Signal description | Color |
|---|---|---|---|---|---|
| 1 | Ground | Black | 11 | Output 2 | White/Yellow |
| 2 | Output 0 | Green | 12 | Input 2 | Brown |
| 3 | Input 1 | Yellow | 13 | Host RXD | Green |
| 4 | Host TxD | Blue | 14 | Primary VCC input | White/Red |
| 5 | ADC1 Input | Orange | 15 | Primary Ground | Black |
| 6 | Reserved | Red | 16 | 1 Bit Bus GND | Black |
| 7 | Reserved | White | 17 | 1 Bit Bus Data | White/Blue |
| 8 | Ignition | Violet | 18 | Aux Port - TX data | White/Orange |
| 9 | V00 | Orange | 19 | Aux Port - GND | Black |
| 10 | Output 1 /Boot | Blue | 20 | Aux Port - Rx data | White/Yellow |
Packaging & Lead Time
Packaging details can be customized according to client specifications.
| Quantity (PCS) | 1 - 1000 | 1001 - 5000 | >5000 | Mold/tooling |
|---|---|---|---|---|
| Est. Time (Days) | 20 | 25 | To be negotiated | 30 days more |
International shipping available via DHL, UPS, FedEx, TNT, ARAMEX and EMS. Customers can choose shipping by air, sea or other methods.
Frequently Asked Questions
Q: Can you help with design?
A: Yes, we are an ODM/OEM company specializing in wire harness and cable assembly since 1999.
Q: When will you start to help design?
A: We provide initial sketches for discussion. After order confirmation, we create detailed drawings for client approval.
Q: What if quality issues occur?
A: Our quality team responds within 72 hours to resolve any issues, as we prioritize long-term customer relationships.
Q: Do you have standard products to reduce lead time?
A: Yes, we maintain over 1000 molds and 5000+ products developed through our 20+ years of wire harness expertise.
