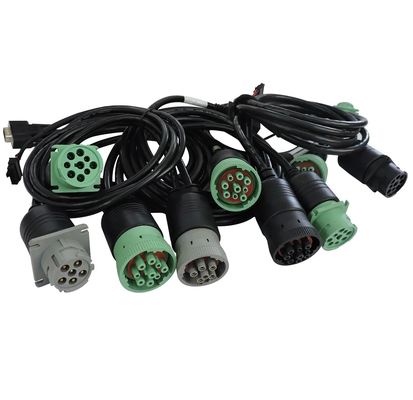

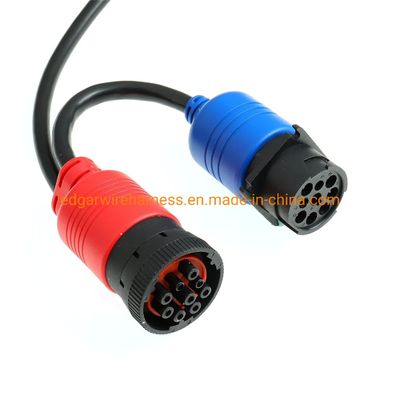

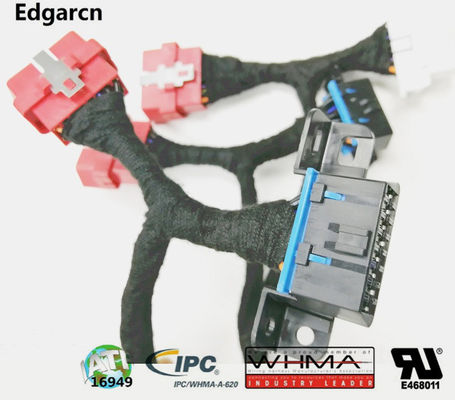

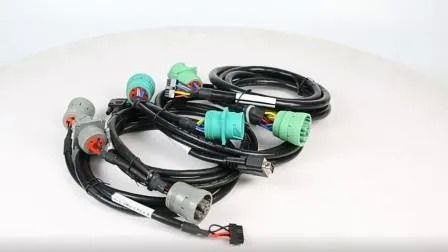

Premium J1939 OBD 9pin and J1962 16pin Truck Wiring Harness with IP68 Waterproof Deutsch Connector
Λεπτομέρειες:
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 10.000 |
|---|---|
| Τιμή: | 10 |
|
Λεπτομερής ενημέρωση |
|||
| Μοντέλο αρ.: | J1939 OBD 9pin και J1962 16pin | Εξουσία: | 85W |
|---|---|---|---|
| Μάρκα συνδετήρων: | Deutsch J1939 HD-16-9-1939s-P080 | Δυναμικό: | 12V / 24V |
| Μήκος: | Προσαρμοσμένος | Θερμοκρασία λειτουργίας: | -40 σε +125°C |
| Αντίσταση δόνησης: | 20 G στα 10-2000Hz | Βαθμολογία IP: | IP68 |
| Αδιάβροχο βάθος: | 1,2 μέτρα για 24 ώρες | Τύπος τερματικού: | 1060-16-0122 |
| Τύπος καλωδίου: | UL 1007 18# / 16# | Διατήρηση επαφών: | 20 λίβρες |
| Εφελκυσμός: | >20 LBS (18#) / >25 LBS (16#) | Μοντέλο αποτυχίας: | Ζημιά στο καλώδιο / Σπασμένο δακτύλιο |
| Μέγεθος πακέτου μεταφοράς: | 40*30*23 εκ | ||
| Επισημαίνω: | J1939 OBD 9pin Truck Wiring Harness,J1962 16pin Truck Wiring Harness,IP68 Waterproof Truck Wiring Harness |
||
Περιγραφή προϊόντων
The EDG-HD series is an environmentally sealed silicone rubber, thermoplastic cylindrical connector designed for faster, easier, trouble-free assembly in heavy-duty diagnostic applications for trucks, buses, cross-country vehicles, cranes, and forklifts. When mated, the contacts are protected from water, dust, lubricating oils, fuel, road salt, grease, mud, and other contaminants.
- Operating temperature range: -40°C to +125°C with no cracking, chipping, or leaking after 20 test cycles
- Withstands sinusoidal vibration levels of 20 G's at 10-2000Hz in three mutually perpendicular planes for 2 hours
- IP68 waterproof rating - withstands immersion under 1.2 meters of water for 24 hours
| Terminal Type | Wire Type | Contact Retention | Ref Crimp Tensile | Failure Model |
|---|---|---|---|---|
| 1060-16-0122 | UL 1007 18# | 20 LBS | >20 LBS | Wire damage |
| 1060-16-0122 | UL 1007 16# | 20 LBS | >25 LBS | Grommet broken |
| Terminal Type | Wire Type | Contact Retention | Ref Crimp Tensile | Failure Model |
|---|---|---|---|---|
| 1060-16-0122 | UL 1007 18# | 20 LBS | >20 LBS | Wire damage |
| 1060-16-0122 | UL 1007 16# | 20 LBS | >25 LBS | Grommet broken |
Packaging details can be customized to client specifications. Standard lead times:
| Quantity (PCS) | 1 - 1000 | 1001 - 5000 | >5000 | Mold/Tooling |
|---|---|---|---|---|
| Est. Time (Days) | 20 | 25 | To be negotiated | 30 days more |
International shipping available via DHL, UPS, FedEx, TNT, ARAMEX, EMS, or by air/sea according to customer preference.
A: Yes, we are an ODM/OEM company specializing in wire harness and cable assembly since 1999.
A: We provide initial sketches for discussion, then begin detailed drawings after order confirmation.
A: Our quality team responds within 72 hours to resolve any issues, as we prioritize long-term customer relationships.
A: Yes, we maintain over 1000 molds and 5000+ products developed through our 20+ years of wire harness specialization.
